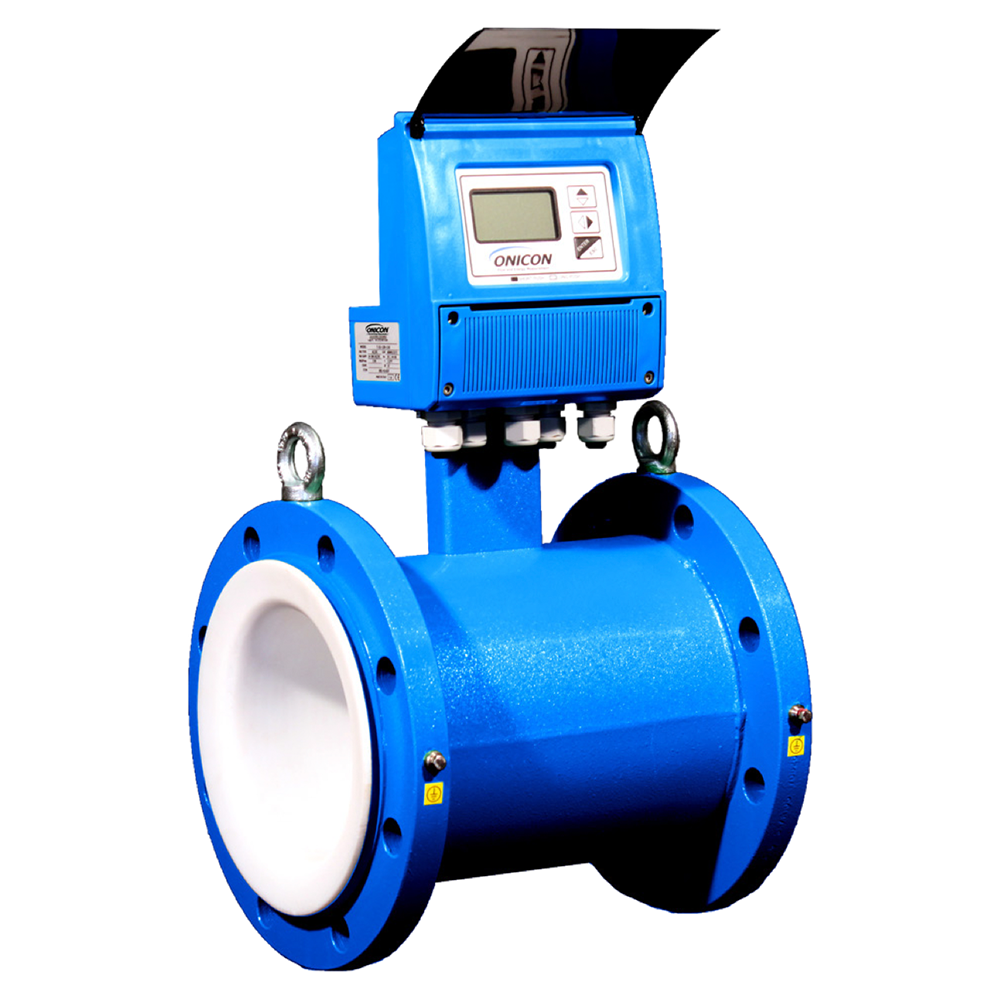

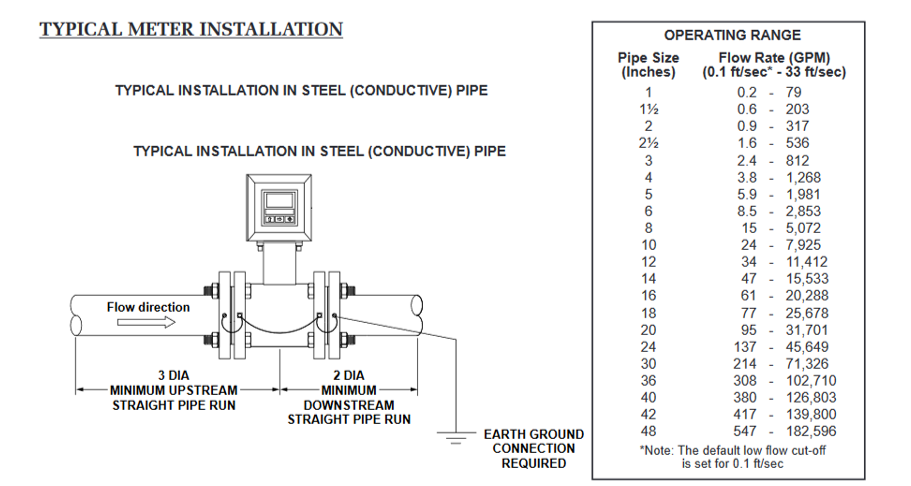

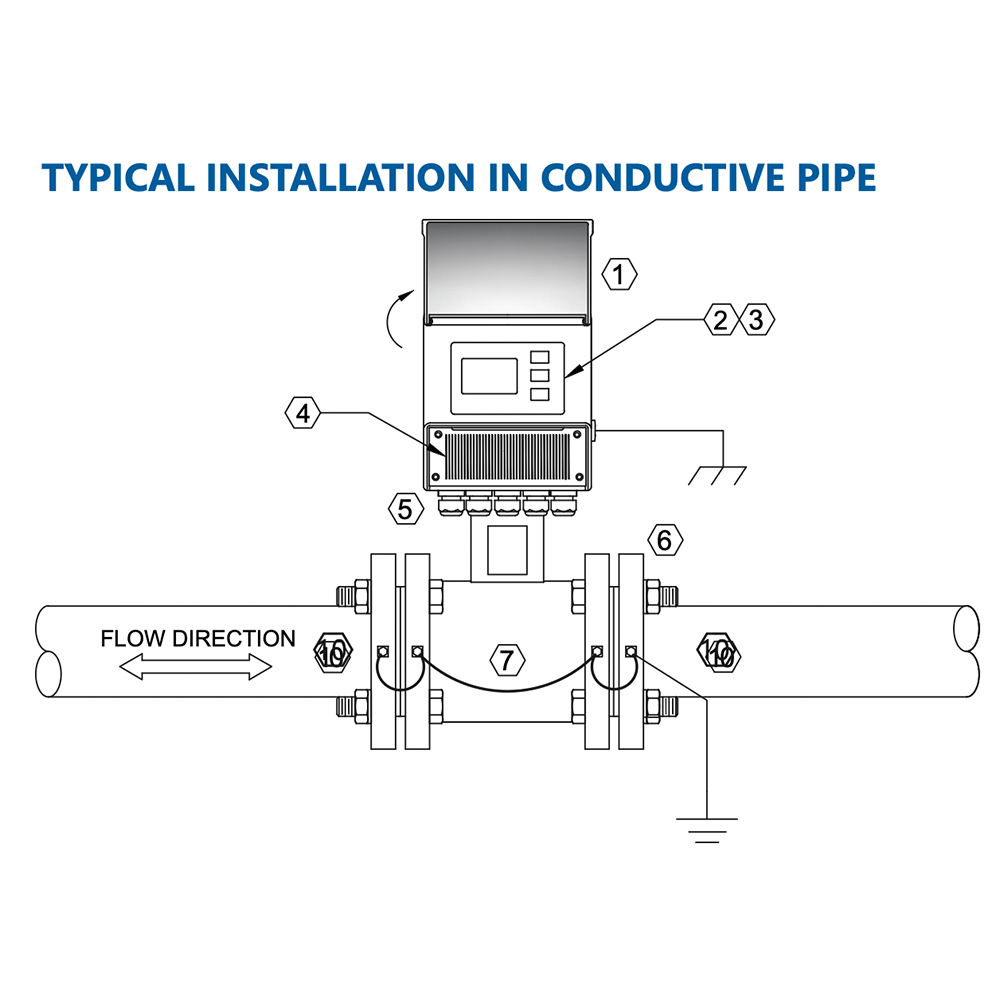

        The F-3000 Inline Electromagnetic Flow Meters are available in sizes from ¼” to 72″ and will be factory-configured for ease of installation and start-up. Typical applications include monitoring of cooling water, heating water, condenser water and domestic water.

Applications

  • Primary/secondary decoupling loop (bypass)
  • HVAC thermal storage tank
  • Domestic water charge/discharge
  • Bi-directional process flow
  • Chilled water, hot water, condenser water & water/glycol/brine solutions used in HVAC
  • Municipal water

Standard Features

       >  Highly Accurate
       >  Simple Installation and Commissioning
       >  Low Maintenance
       >  Simplified Installation and Commissioning
Categories: , ,

Description

GENERAL SPECIFICATIONS

ACCURACY
Accuracy is associated with the selected transmitter:
Basic Transmitter:
± 0.4% of reading from 3.3 to 33 ft/s
± 0.75% of reading from 1 to 3.3 ft/s
± 0.0075 ft/s at flows less than 1 ft/s
Advanced Transmitter:
± 0.2% of reading from 1.6 to 33 ft/s
± 0.0033 ft/s from 0.033 to 1.6 ft/s
SENSING METHOD :          Electromagnetic sensing (no moving parts)
FLUID TEMPERA TURE RANGE :   Refer to Liner Selection table below
OUTER BODY MATERIALS OPTIONS :  Carbon Steel, painted  316 Stainless Steel
FLOW TUBE (Internal) :      304 Stainless Steel
CONNECTION TYPES AVAILABLE
Wafer
ANSI Class 150 flange
ANSI Class 300 flange
NPT threads, line sizes up to 1”
ELECTRICAL CONNECTIONS
Removable terminal blocks, for use with 18-22 AWG shielded cable
FLUID CONDUCTIVITY :          5 μS/cm minimum
POWER SUPPLY OPTIONS
24 VAC/DC, 10 W (12 VA) typical
100 – 240 V
AC, 12 VA typical
