SYSTEM-20 BTU METER

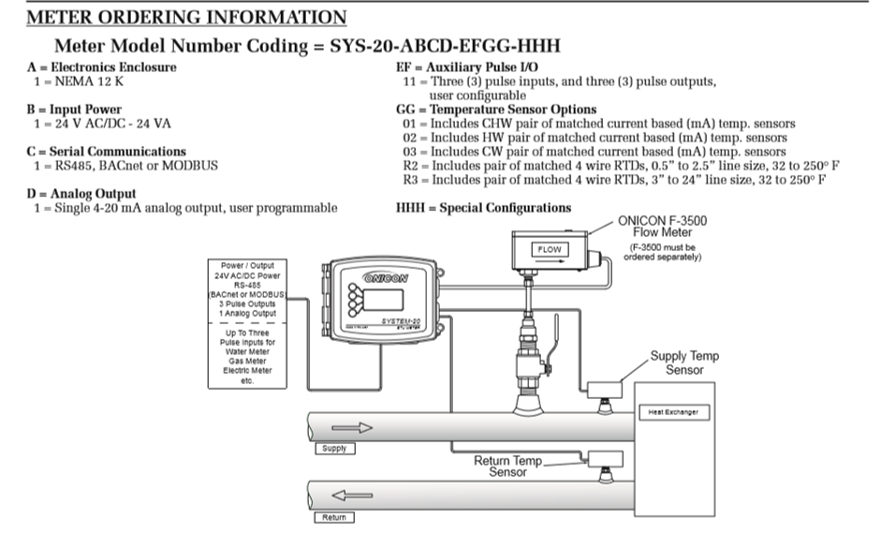

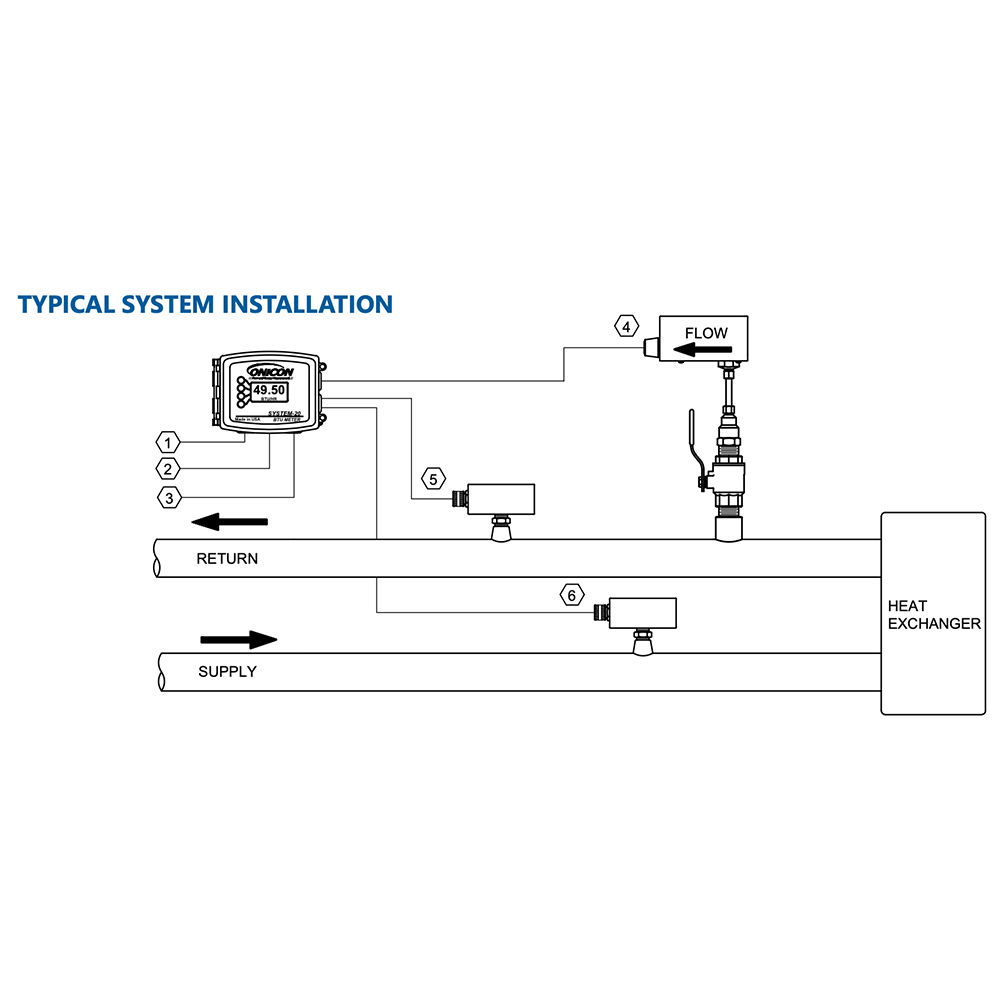

The System-20 BTU Meter provides highly accurate thermal energy measurement in water and water/glycol cooling, heating and condenser water systems. Energy measurements are based on signal inputs from a matched pair of temperature sensors and any of ONICON’s flow meters that are ordered separately. The flexible design provides energy, flow and temperature data on the local display via analog and pulse outputs, and over BACnet® MS/TP or MODBUS® RTU networks. Three auxiliary inputs are also provided to totalize pulses from other devices and communicate these totals directly to the network.

APPLICATIONS

Chilled water, hot water and condenser water systems for:

• Central plant monitoring

• Campus energy monitoring and cost allocation

• Performance/efficiency evaluations

• Energy monitoring for performance contracts

• AHU and CRAC units for commercial office tenant billing

• Solar, geothermal and ground-source energy monitoring

Standard Features

Multiple Outputs
Each meter is provided standard with three programmable pulse outputs and one analog output. An RS-485 output is also provided for BACnet® MS/TP or MODBUS® RTU.

Multiple Flow Meter Options
The System-20 may be ordered with any of ONICON’s inline, insertion, or clamp-on style flow meters. This allows you to match specific flow meter features and benefits to your application.

Multiple Temperature Sensor Options
The System-20 may be ordered with ONICON’s precision current based sensors or a pair of matched Platinum RTDs. Each option offers exceptional accuracy and reliability.

Auxiliary Pulse Inputs
Three user defined pulse inputs are provided standard. Pulses from water, gas or electric meters may be totalized in the System-20 to simplify network connectivity at the metering location.

Built-In Interval Data Logger
Energy and volume totals are date/time stamped and logged within the meter along with operating status and other analytical data. Data is available via BACnet® or MODBUS®.

Suitable for Water and Water/Glycol Solutions
System-20s are field programmable for water or water/glycol solutions to ensure accurate flow and energy measurement.

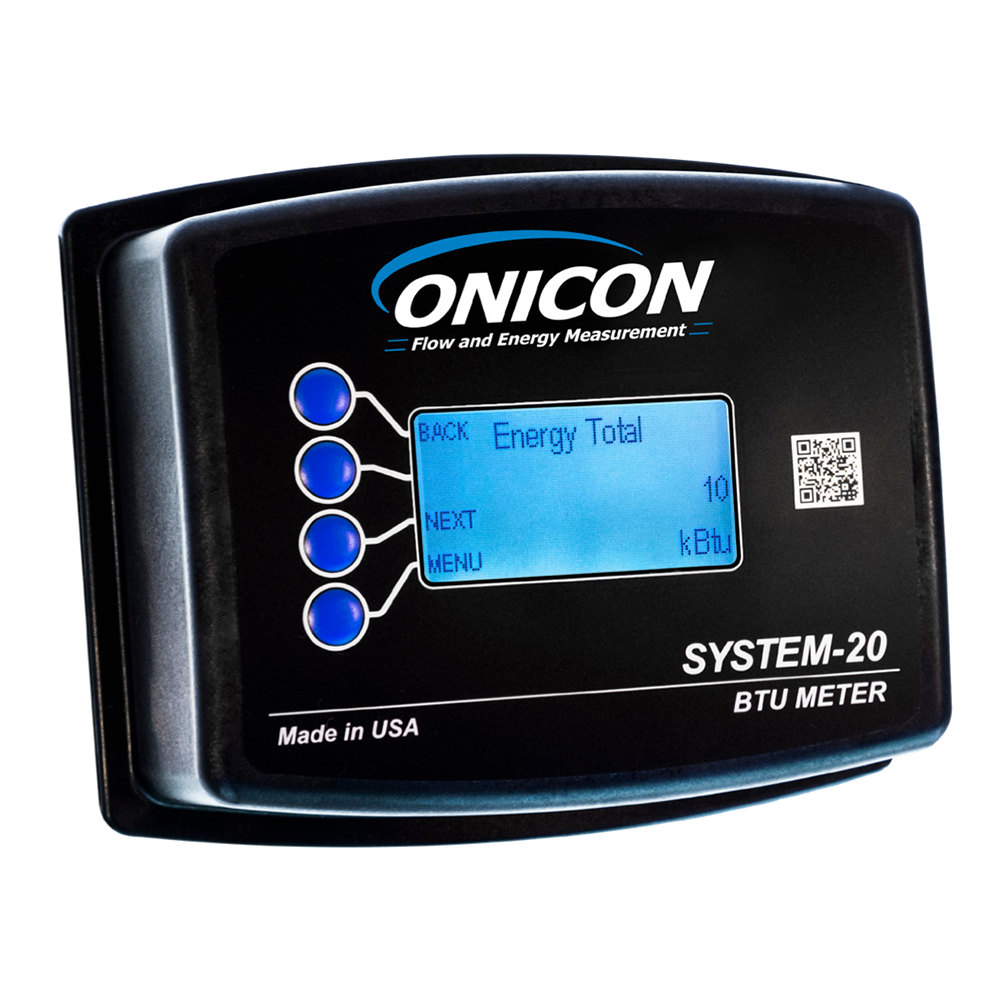

User Friendly Interface Display
The bright, easy-toread, back-lit display uses “smart button technology” to simplify programming and commissioning, eliminating the need for special configuration tools.
