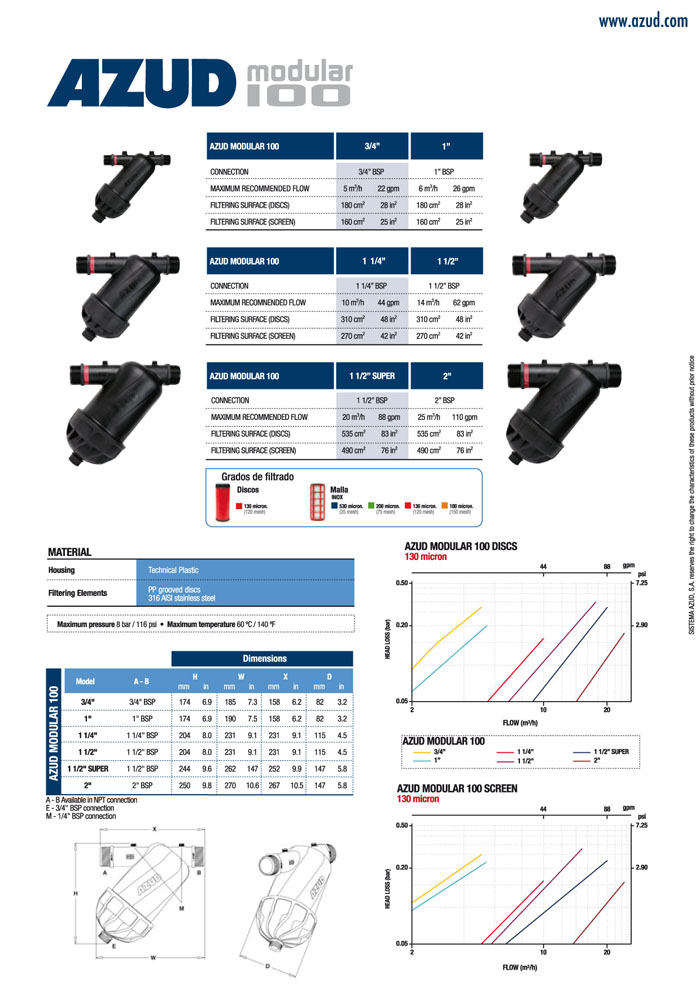

AZUD MODULAR 100

AZUD MODULAR 100 is a range of lower flow disc and screen filters manufactured in high quality thermoplastic, which ensures easy handling, high resistance and maximum durability. Max flow 25 m3/h (110 gpm)

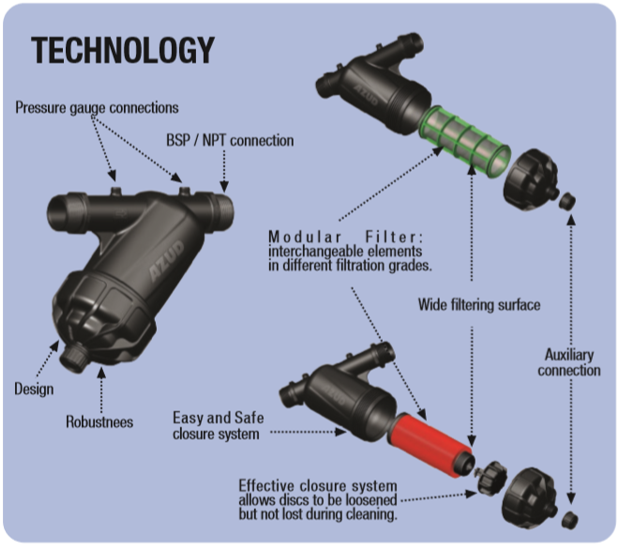

1. Manometric intakes.
2. BSP / NPT connection.
3. Design.
4. Robustnees.
5. Easy and Safe closure system.
6. Modular Filter: interchangeable elements in different filtration grades.
7. Wide filtering surface.
8. Effective closure system that avoids discs not to be compressed or lost during their cleaning.
9. Auxiliary connection.

Advantages

– MAXIMUM QUALITY AND SAFETY : Wide range of filtration levels available with either discs or screens.

– LARGE FILTERING AREA RESULTS IN LESS MAINTENANCE : This allows a reduction in the frequency and   level of maintenance. The discs and screens can be easily removed for cleaning.

– ROBUSTNESS : Base and lid manufactured in high quality thermoplastic.

– THREADED CLOSURE SYSTEM : Efficient from low to high pressures

– GASKET SET IN THE LID : Avoids loss or ware during maintenance.

– EQUIPPED WITH AUXILIARY CONNECTIONS : Lid has threaded connection on the bottom which allows for easy draining or pressure relief. Ports on all sizes for pressure gauges.

– EASY HANDLING : No tools required for maintenance.

– EASY INSTALLATION

– RESISISTANCE TO CHEMICAL PRODUCTS : Special gaskets available.

Additional information

– Disc filtering element with threaded closure of easy handling, which ensures the compression and prevents accidental disc loss.

– Screen filtering element, in plastic and in stainless steel.
