F-5500 Series Thermal Mass Flow Meters

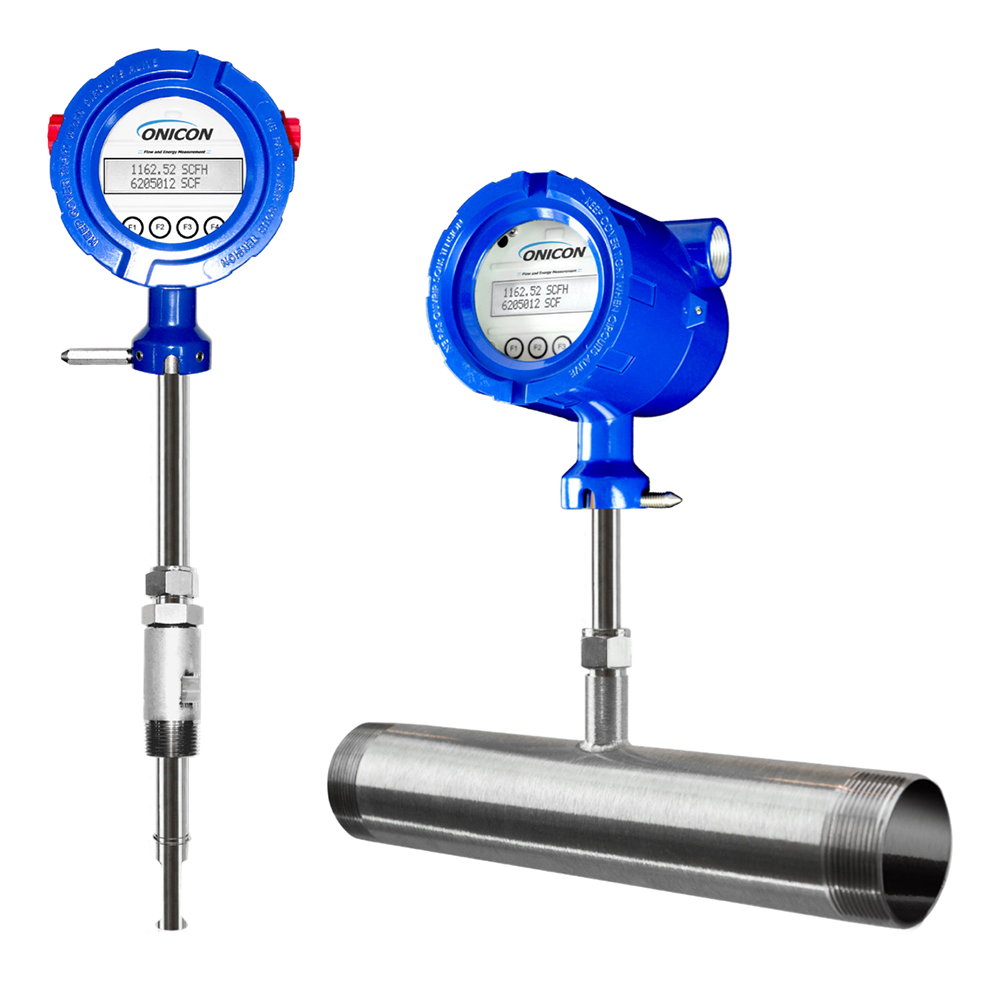

          F-5500 Thermal Mass Flow Meters provide direct standard volumetric flow measurement of gases without the need for temperature and pressure compensation. Both inline and insertion versions of the flow meter are available. The insertion design allows for easy insertion or removal from the pipe without the use of special tools and without disrupting flow. Inline meters are ideal for pipes less than 1½” in diameter. The low maintenance design is provided ready-to-use without the need for field programming.

The F-5500 flow meter includes a bright, easy-to-read user interface/display that provides rate and total data. The standard version of the meter is provided with a 4-20 mA analog output and an RS485 interface that is field configurable for BACnet® MS/TP or Modbus® RTU. A second output signal configuration is available that includes a 4-20 mA output for flow rate and a scaled pulse output for totalization or alarm indication.

APPLICATIONS

Accurate sub-metering of natural gas & propane for:
     •Tenant space usage
     •Boiler efficiency
     •Campus monitoring
Also ideal for monitoring:
     •Compressed Air
     •Medical gases
    •Other industrial gases

GENERAL SPECIFICATIONS

FLOW ACCURACY
  Natural Gas / Propane Gas
     ± 1.0% of reading from 500 – 7000 SFPM
     ± 2.0% of reading from 100 – 500 SFPM
  Compressed Air & other high velocity calibrations
     ± 1.0% of reading + 0.5% of scale over a 100:1turndown
TEMPERATURE ACCURACY :  ± 1.0°F over the range of -40 to 250° F
OVERALL FLOW RANGE :   15 to 35,000 SFPM
SENSING METHOD :     Thermal mass flow utilizing direct digital control sensing circuitry
PIPE SIZE RANGE :

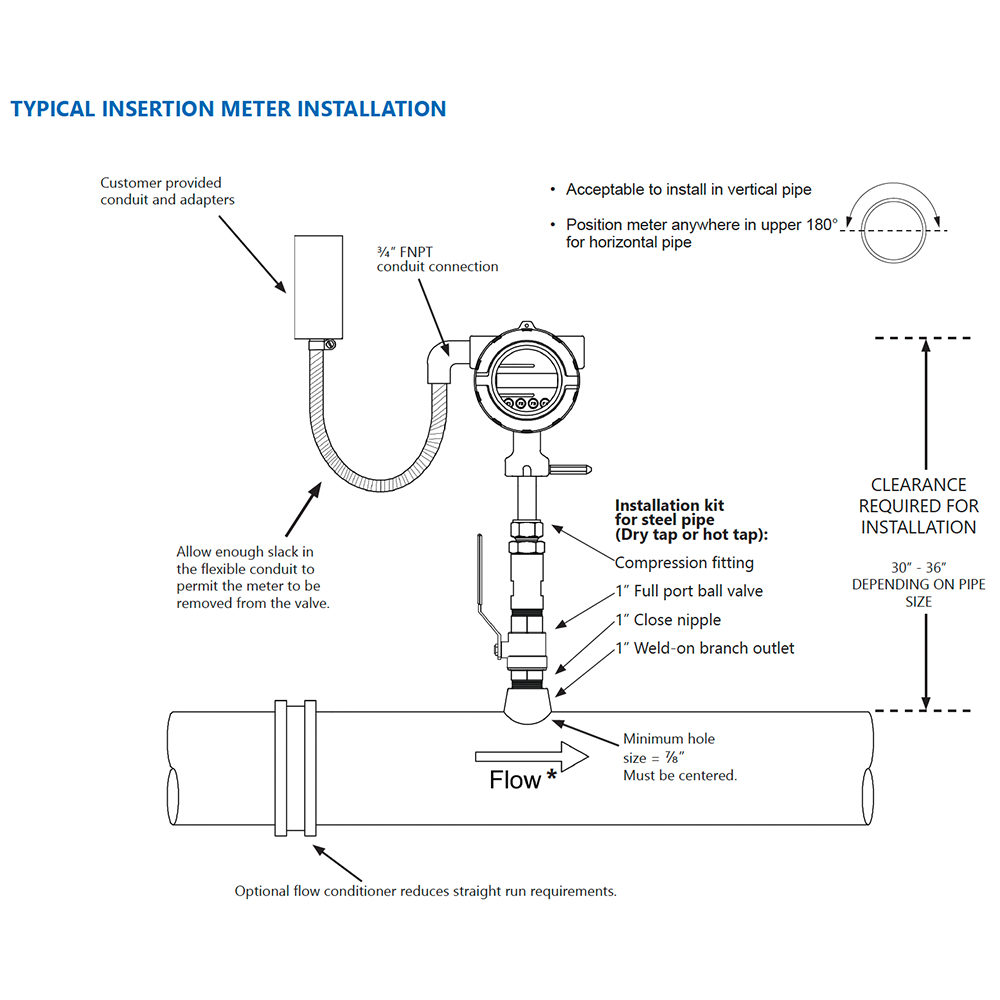

Insertion style – 1½” through 24” nominal diameter
Inline style – ¾” through 6” nominal diameter
INPUT POWER :    12 – 28 VDC, 6W minimum power
FLUID TEMPERATURE RANGE :      -40° F to 250° F
AMBIENT TEMPERATURE RANGE :    -40° F to 158° F
MAXIMUM OPERATING PRESSURE
Insertion flow meter:
Standard process adapter fitting – 60 PSIG (4.1 barg) max
High pressure adapter fitting – 150 PSIG (10.3 barg) max
Inline flow meter:
Flanged-ANSI 150 (230 PSIG at 100 ̊ F (16 barg))
NPT 300 PSIG (20.7 barg)
All stainless steel ferrules
