F-5400 Series Thermal Mass Flow Meter

         ONICON’s F-5000 Series Thermal Mass Flow Meters provide accurate mass flow measurement of natural
gas, compressed air and other industrial gases. The proprietary sensor design measures mass flow directly and does not require additional pressure or temperature compensation to deliver accurate flow rate and total data.

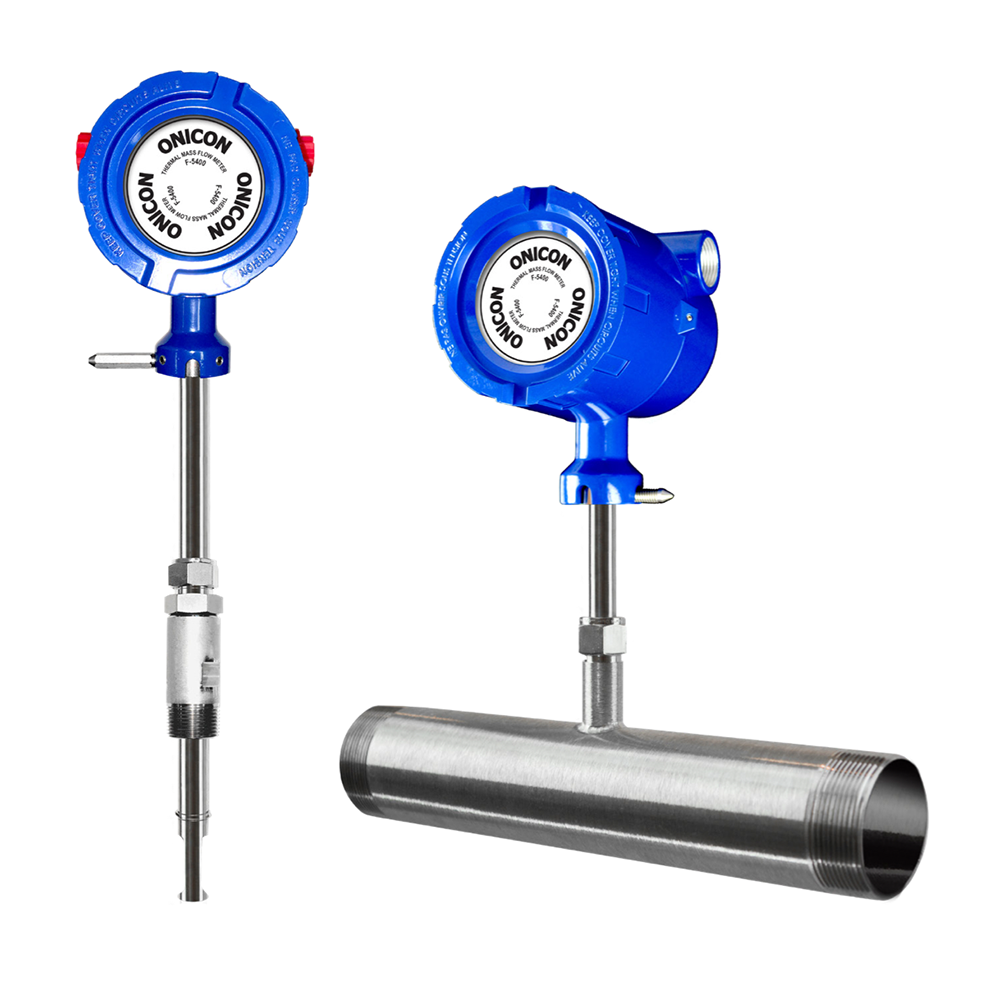

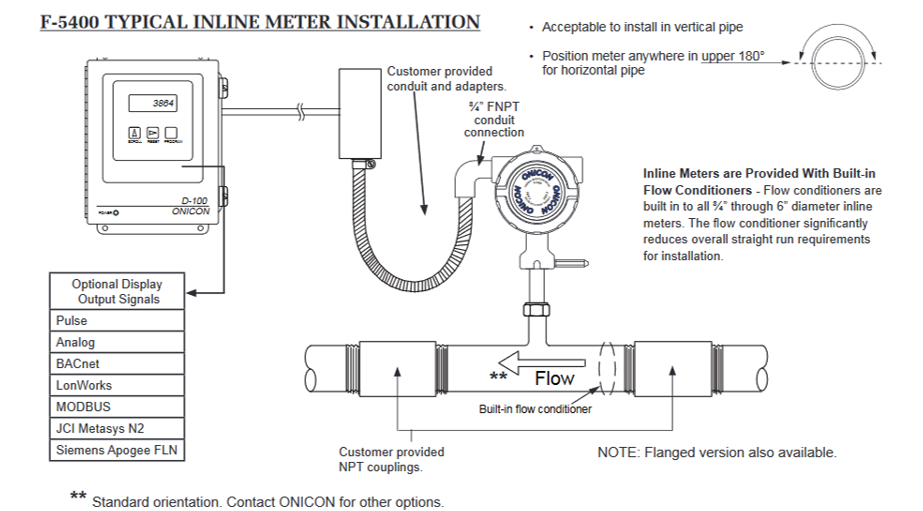

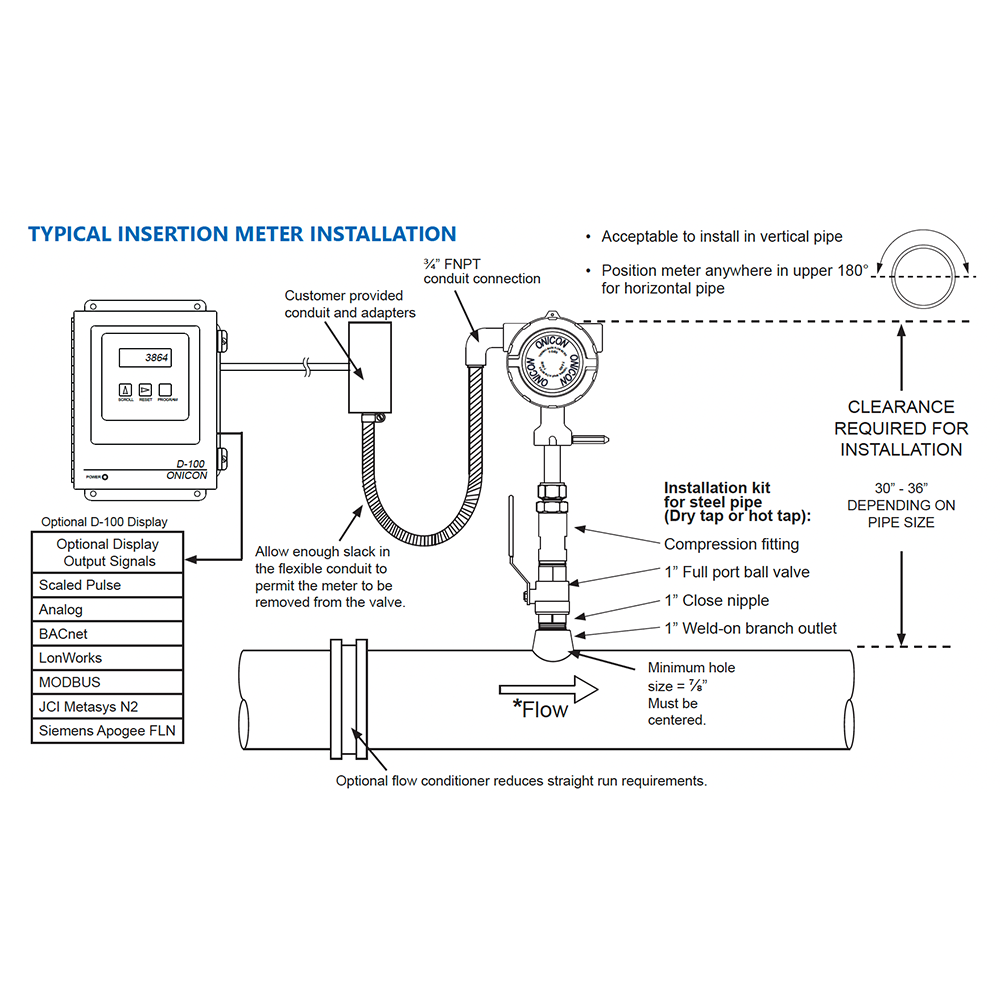

          The F-5400 is available as an inline or an insertion style meter without a LCD display. This version of the meter is provided with a 4-20 mA analog output and pulse output.

APPLICATIONS

Accurate sub-metering of natural gas & propane for:
        •Tenant space usage
        •Boiler efficiency
        •Campus monitoring
Also ideal for monitoring:
       •Compressed Air
       •Medical gases
       •Other industrial gases

GENERAL SPECIFICATIONS

FLOW ACCURACY
 Natural Gas / Propane Gas
       ± 1.0% of reading from 500 – 7000 SFPM
       ± 2.0% of reading from 100 – 500 SFPM
 Compressed Air & other high velocity calibrations
       ± 1.0% of reading + 0.5% of scale over a 100:1 turn down
OVERALL FLOW RANGE :      15 to 35,000 SFPM
SENSING METHOD :    Thermal mass flow utilizing direct digital control sensing circuitry
PIPE SIZE RANGE
     Insertion style – 1½” through 24” nominal diameter
     Inline style – ¾” through 6” nominal diameter
INPUT POWER :      12 – 28 VDC, 6W minimum power
FLUID TEMPERATURE RANGE :     -40° F to 250° F
AMBIENT TEMPERATURE RANGE :   -40° F to 158° F
MAXIMUM OPERATING PRESSURE
 Insertion flow meter:
      Standard process adapter fitting – 60 PSIG (4.1 barg) max
      High pressure adapter fitting – 150 PSIG (10.3 barg) max
 Inline flow meter:
     Flanged-ANSI 150 (230 PSIG at 100 ̊ F (16 barg))
     NPT 300 PSIG (20.7 barg) All stainless steel ferrules
