F-4300 Clamp-on Ultrasonic Flow Meter

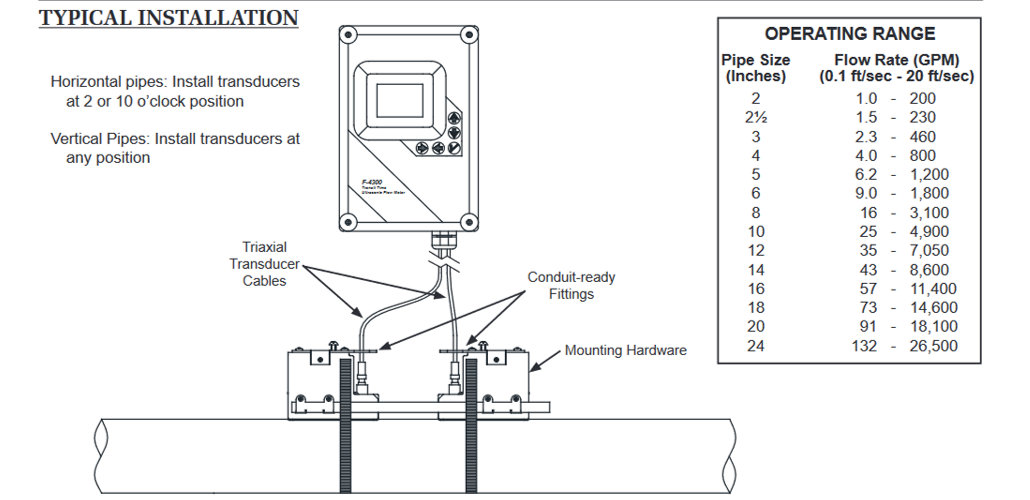

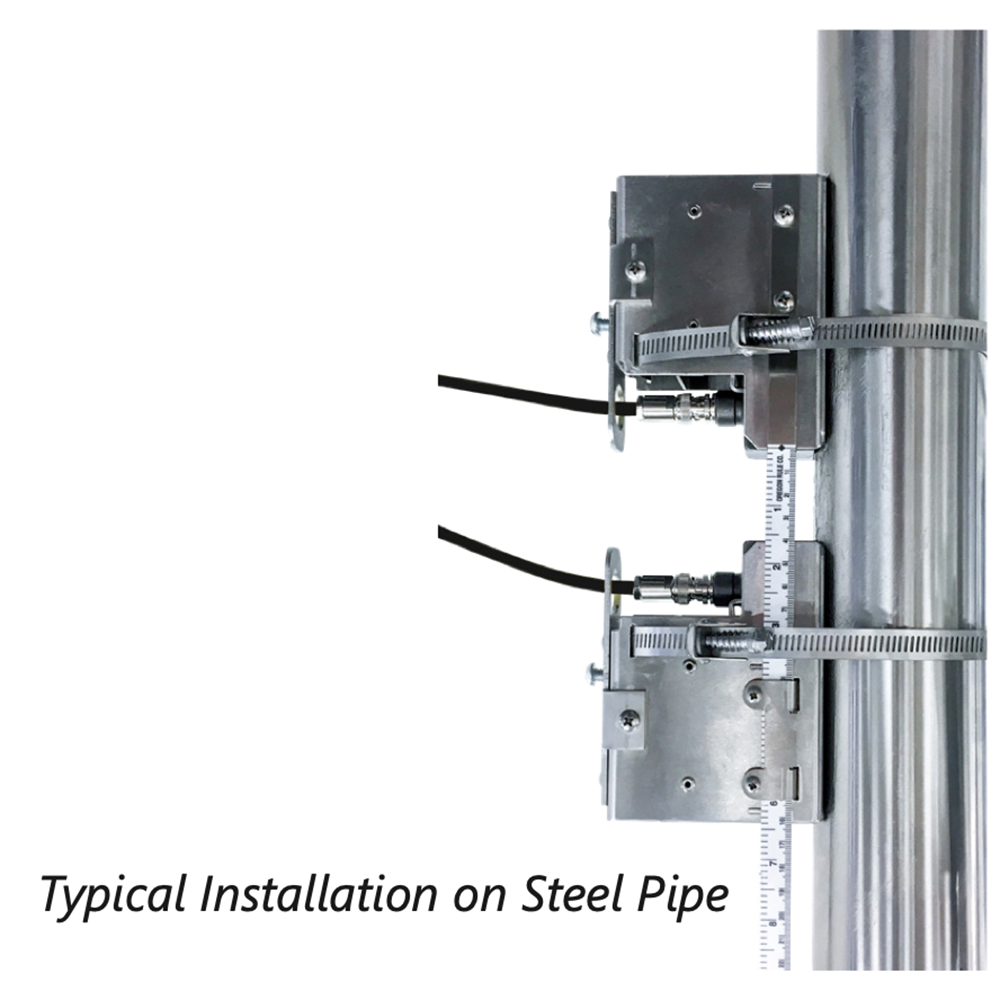

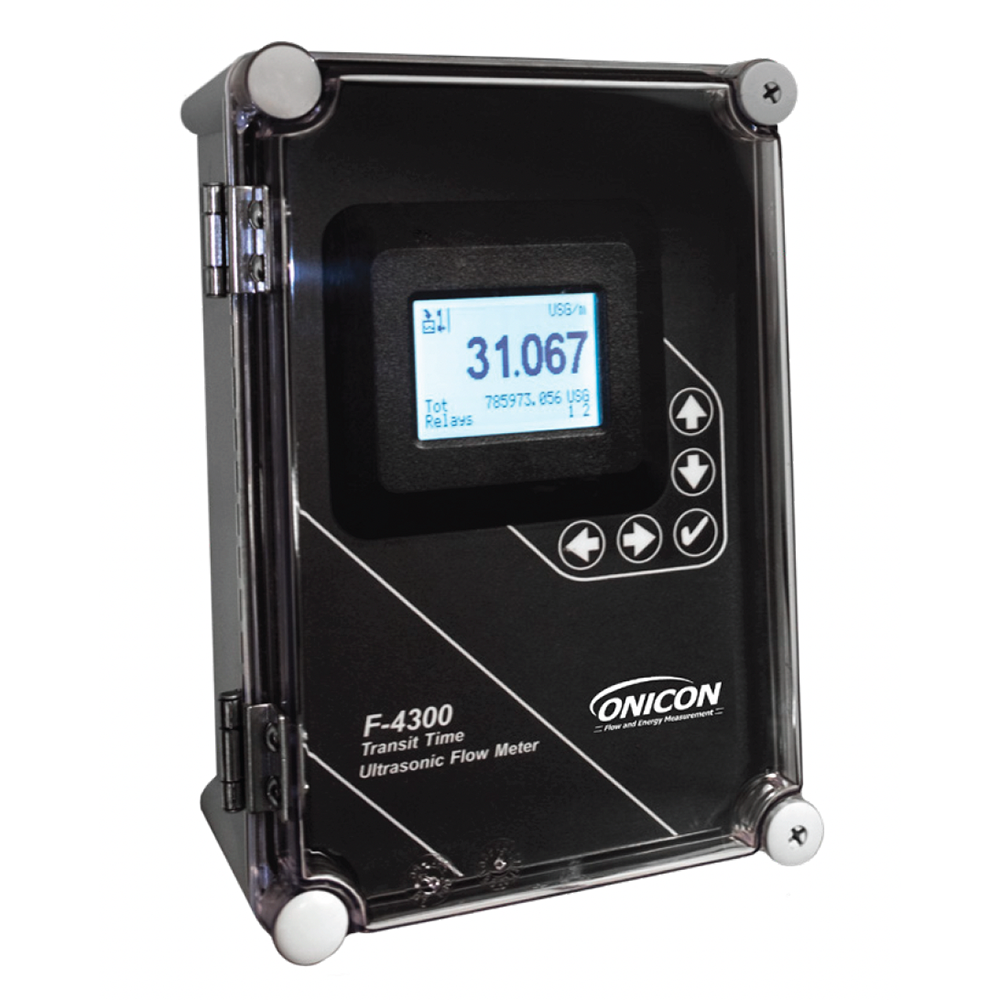

   ONICON F-4300 Clamp-on Ultrasonic Flow Meters offer an ideal solution for liquid flow measurement in existing systems when it is impractical to install traditional inline or insertion style flow meters. The innovative design incorporates matched precision clamp-on transducers and signal processing circuitry to accurately measure the flow of most liquids over a wide velocity range. Each F-4300 is provided with transducers and easy-to-use mounting hardware, factory supplied transducer cabling, and a wall mount enclosure with an LCD and user interface keypad.
     Output signals include a single analog output and two pulse outputs. The F-4300 is also provided with an
isolated RS485 output capable of communicating over BACnet®MS/TP or MODBUS®RTU networks. Optional

Applications

  • Chilled water, hot water, condenser water & water/ glycol solutions for HVAC
  • Steam condensate
  • Domestic/municipal water
  • Process water & other clean liquids
.

GENERAL SPECIFICATIONS

ACCURACY
± 1.0% of reading from 1 to 20 ft/sec
± 0.01 ft/s for velocities below 1 ft/sec
OVERALL FLOW RANGE :   0.1 to 20 ft/sec
SENSING METHOD
Clamp-on ultrasonic, differential transit time
method in direct or reflect mode
PIPE SIZE RANGE :    2” through 24” nominal diameter
POWER SUPPLY OPTIONS
Standard: 18-30 VDC/VAC, 10 VA Maximum
Optional: 100-240 VAC 50-60 Hz, 10 VA Maximum
FLUID TEMPERATURE RANGE
Standard: -40° F to 250° F
AMBIENT TEMPERATURE RANGE
-5° F to 140° F
