F-1000 Series Turbine Flow Meters

        ONICON’s F-1000 Series is a family of insertion and inline style turbine meters flow meters that provide accurate, reliable flow measurement in a variety of applications. The F-1000 Series meters are suitable for use in pipes ranging in size from ¾ to 72” in diameter. Each model utilizes ONICON’s patented electronic turbine rotation sensing system and unique low mass turbine design that is accurate over wide flow ranges with excellent low flow measurement capability.

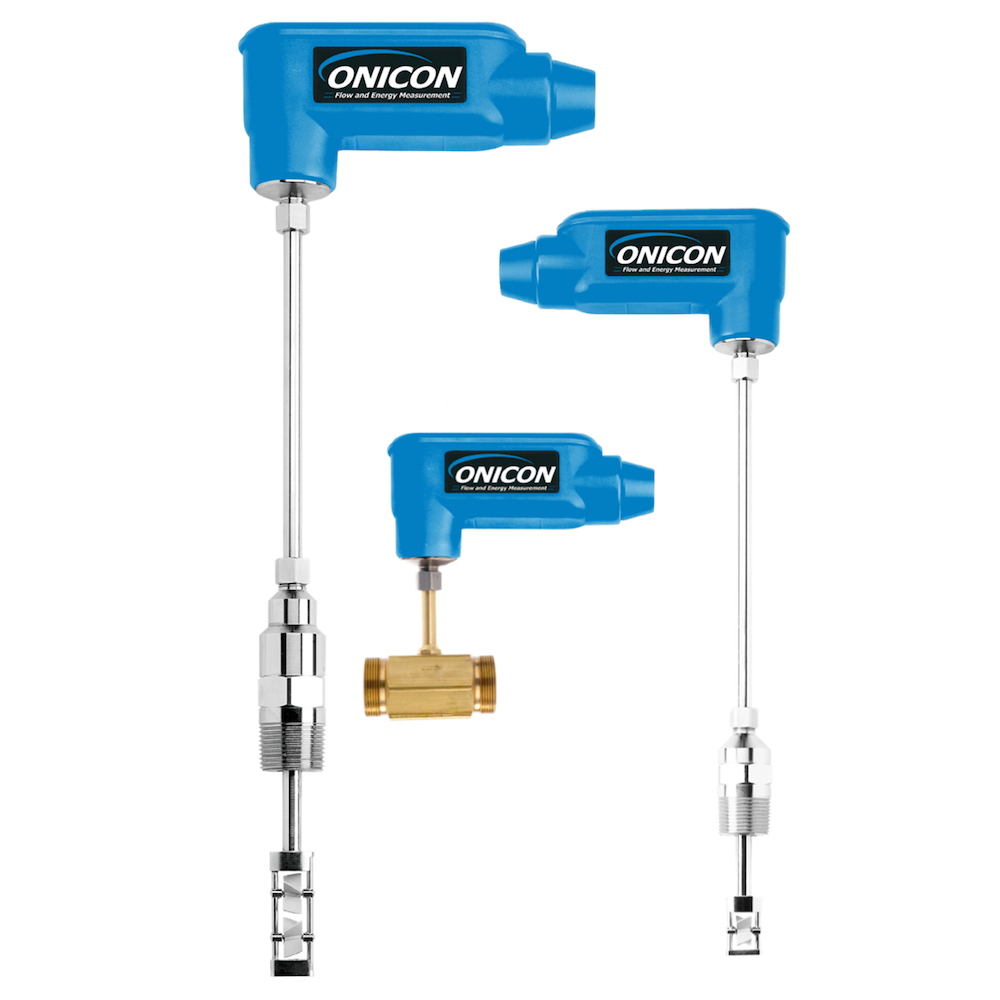

      THREE DIFFERENT STYLES

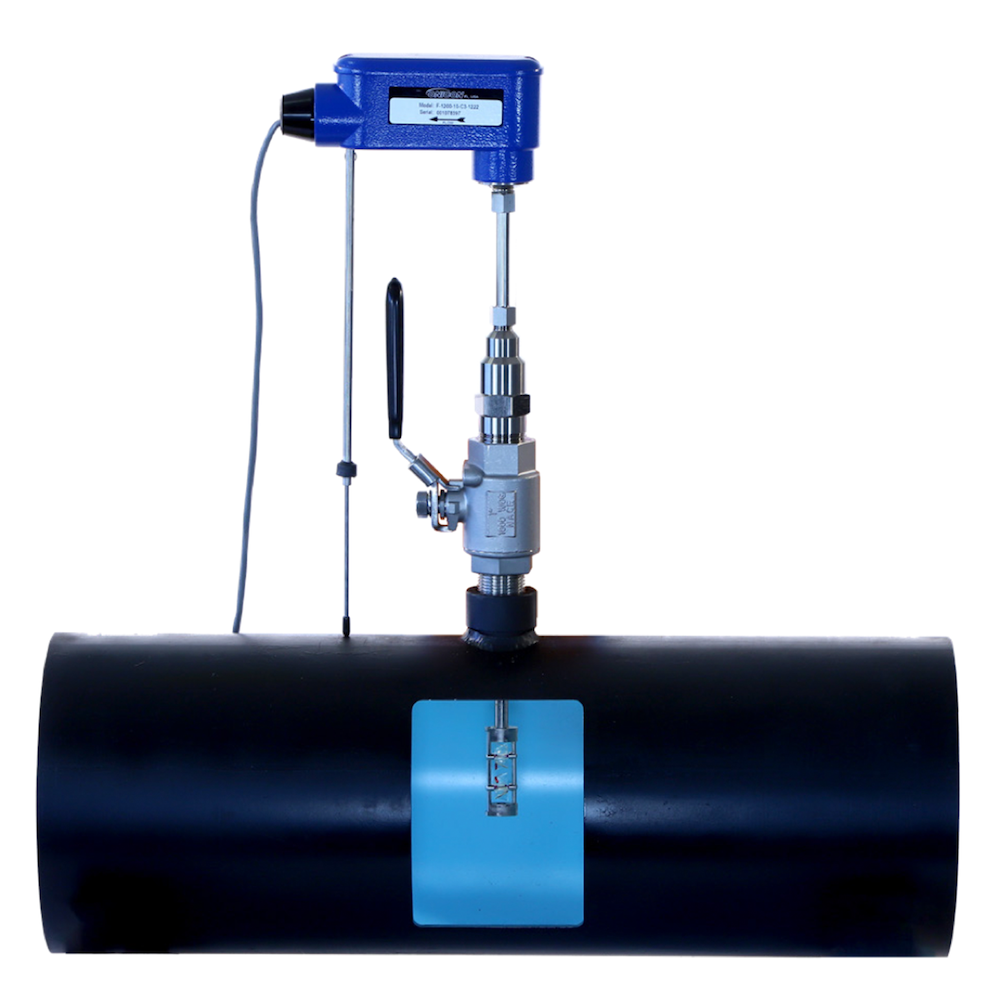

     •F-1100 single turbine insertion meters   Suitable for use in 1¼ – 72” pipes

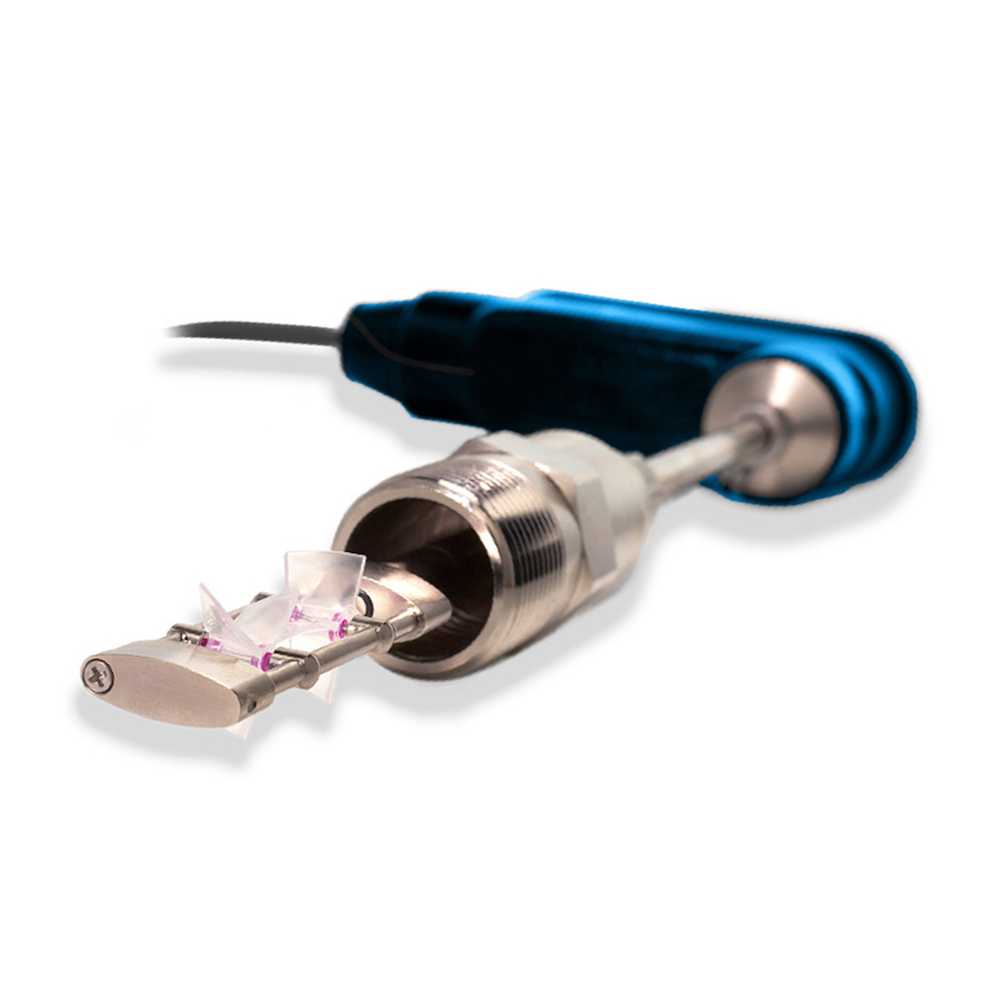

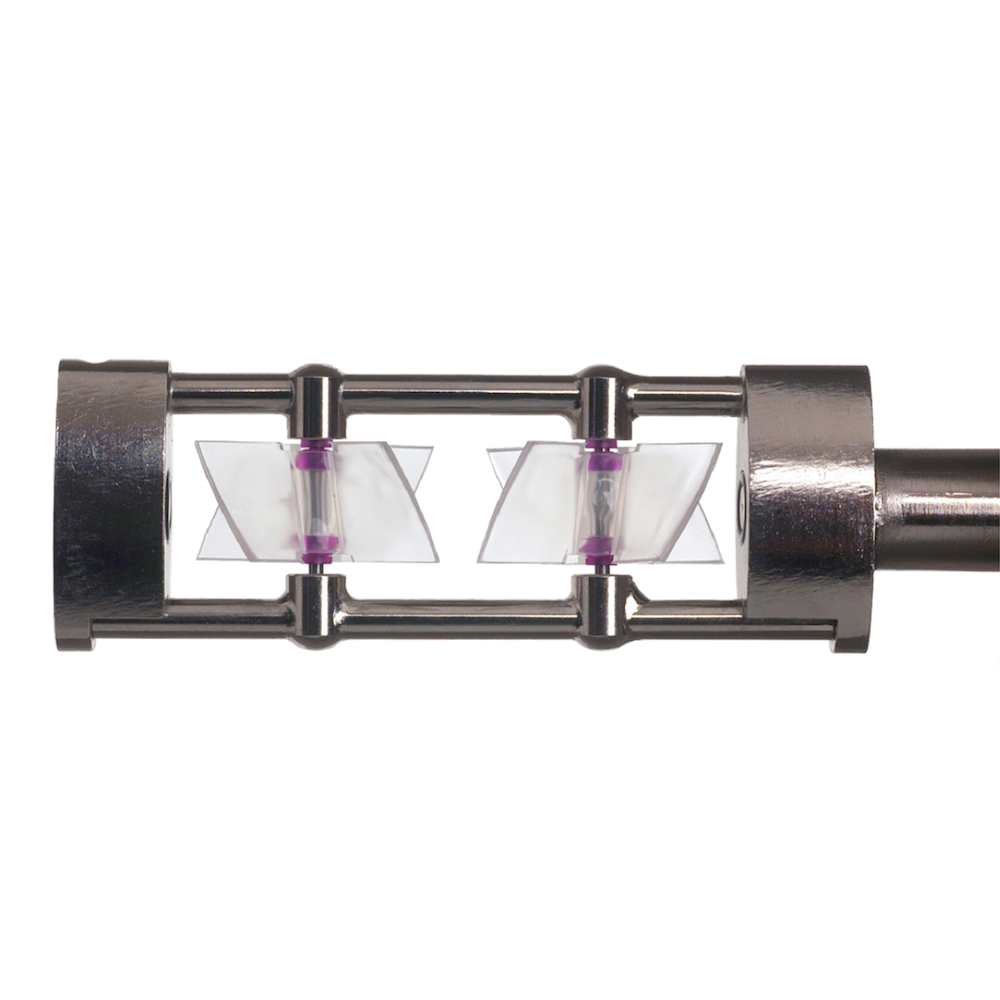

     •F-1200 dual turbine insertion meters    Suitable for use in 2½ – 72” pipes

     •F-11XX single turbine inline meters     Available as ¾ and 1” meters.

APPLICATIONS

    •Chilled water or hot water & water/glycol solutions for HVAC

    •Domestic/municipal water

    •Clean process water

Categories: , , Tags: , , , , ,

GENERAL SPECIFICATIONS

ACCURACY
         ± 0.5% of reading at calibrated velocity
         Insertion: ± 1% of reading from 3 to 30 ft/s (10:1 range)
         ± 2% of reading from 0.4 to 20 ft/s (50:1 range)
         Inline: ± 2% of reading from 0.8 to 38 GPM (50:1 range)
SENSING METHOD :    Electronic impedance sensing (non-magnetic and non-photoelectric)
PIPE SIZE RANGE
Insertion: 1¼ through 72” nominal diameter
Inline: Threaded or sweat union fittings – ¾ or 1”
SUPPLY VOLTAGE :   24 ±4 V AC/DC at 100 mA
LIQUID TEMPERATURE RANGE
Medium Temp: 150° F continuous, 200° F peak
High Temp: 280° F continuous, 300° F peak
Meters operating above 250° F require 316 SS construction option
AMBIENT TEMPERATURE RANGE :    -5° to 160° F (-20° to 70° C)
OPERATING PRESSURE :   400 PSI maximum
PRESSURE DROP
Insertion: Less than 1 PSI at 20 ft/s in 1½” pipe,
decreasing in larger pipes and lower velocities
Inline: 3 PSI at maximum flow rate
