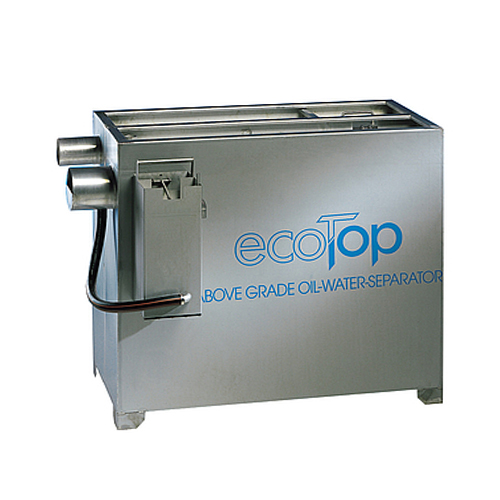

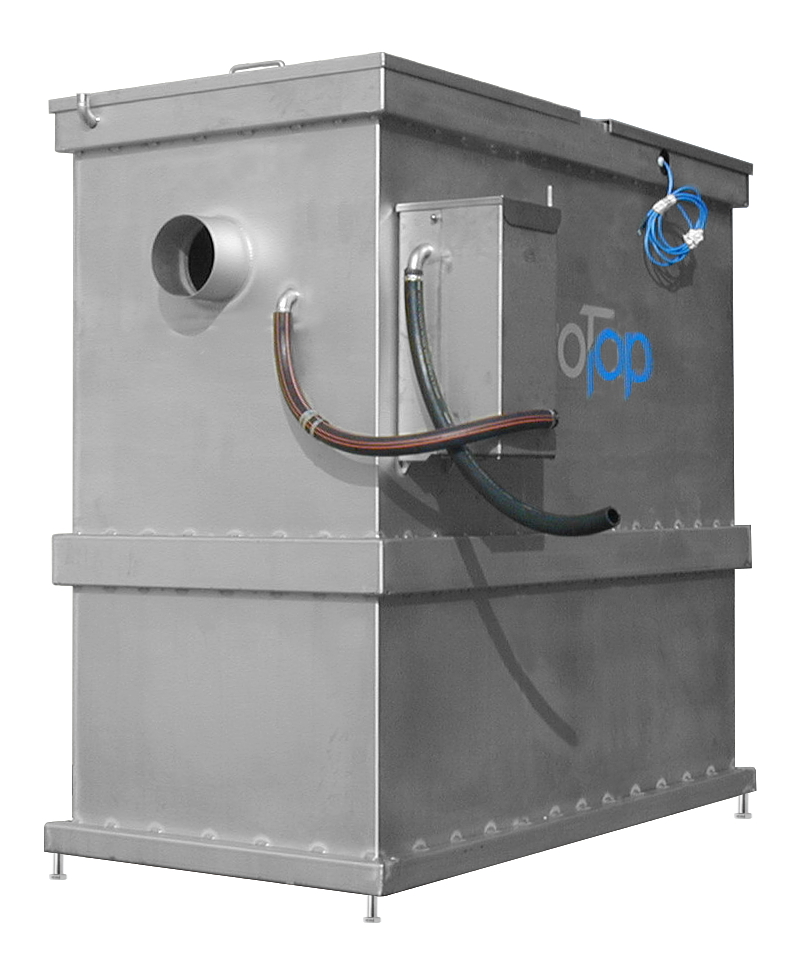

ecoTop – Above Ground

Above ground Oil Water Separator according to EN858 and DIN1999 for the separation of free non-emulsified oil from water.

         The ecoTop oil/water separator is designed to separate free non-water-soluble light liquids (as defined in the German Standard DIN1999 and the European Standard prEN 858-1) with a maximum specific gravity of 0.950 from water (petroleum byproducts such as gasoline, diesel and other mineral oils).

         The sediment and solids pre-treated runoff is gravity fed or pumped (typically with a positive displacement
or diaphragm type pump) to the gravity separator through a submerged inlet pipe. The separation process relies on the fact, that light fluids have a lower specific gravity than water and thus float on the water surface.

         The ecoTop is made of stainless steel 1.4301, pickled and anodized after welding.

Ecotop at a glance:

>  30% to 50% annual maintenance cost savings Removable top panel for full access to all major elements and reduced or no confined space entry requirements for cleaning and maintenance.

           >  Small floor space required Ecotop is optimized in terms of efficiency and space requirements.

           >  High operational reliability No external energy supply is required, no electrical parts and constructed only of  stainless steel components.

          >   Liquid level sensors For permanent monitoring of changes in the liquid levels.

          >   Automatic oil-drawoff device This prevents emulsion from being formed and allows >99% concentrations of light liquids to be collected.

          >   Low disposal cost, Only the oil is disposed of, not an oil-water mixture.

An investment that is built to last Thanks to the use of high grade stainless steel vessels.

           >    5 ppm separation The outstanding test results achieved at noted testing institutions show that Ecotop will be able to meet even tougher future standards.
