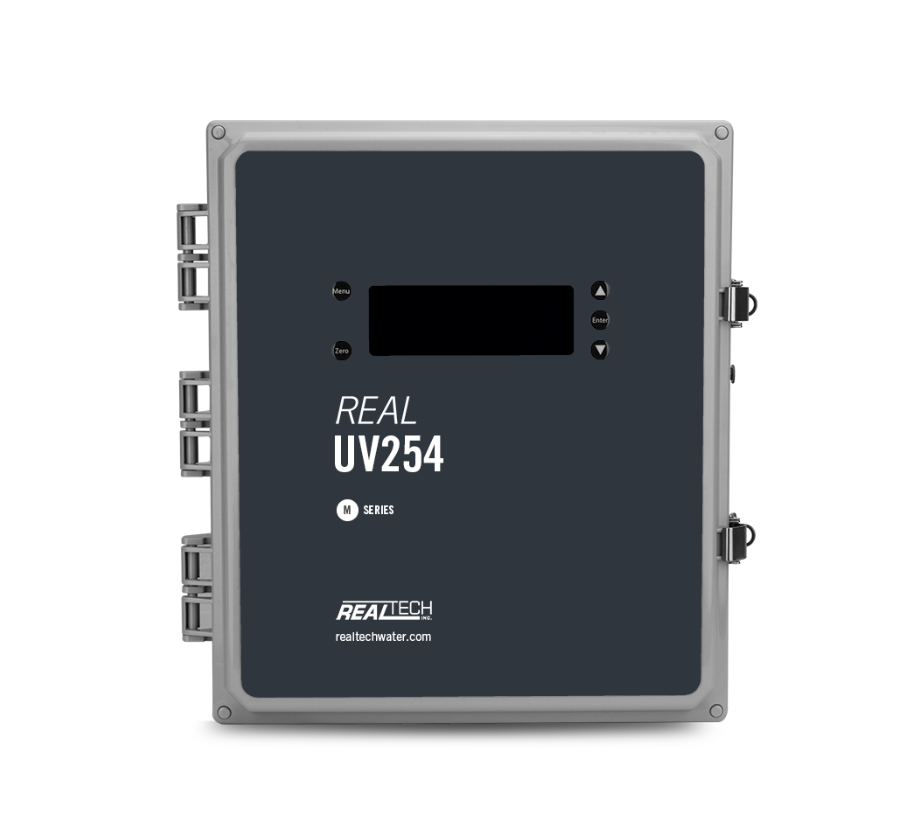

Real UV254 M Series Analyzers
Real Tech’s UV254 Online analyzers offer an affordable and accurate solution for real-time UV254 or UVT monitoring. Benefiting from Split-Sense Pro and patented Ortho-beam technology, the need for calibration is limited lowering maintenance requirements. Several path length options provide solutions for wastewater to high purity applications.
- Real-time UV254 or UVT organics analysis
- Accurate and reliable data
- Simple to install and operate
- Low maintenance, bypass style design
- 4 line x 20 character backlit LCD display
- Optional automatic chemical cleaning systems
- 2-year limited warranty
- Specifications
- Model&Range
- Download
Specifications
CHARACTERISTIC | TECHNICAL DATA |
Path Lengths | 1, 2, 4, 8 mm (M2000 series) 10 x 20 mm (M3000) 50, 100, 150, 250 mm (M4000 series) |
Parameters | UVT, UV254 |
Range | Depends on model selected. Refer to range chart |
Accuracy | ± 0.5% FS |
Units | % or cm-1 (mg/L correlated value) |
Sampling Time | 10 seconds |
Calibration | In-situ zeroing to any sample with known UVT. No further calibration required. |
Cleaning | In-situ cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional. |
Self-Diagnostic | Detection and diagnosis of internal system fault |
Operator Interface | Five push buttons to control a comprehensive hierarchical menu system |
Display | 4 line x 20 character backlit LCD with LED alarm indicator |
Alarms | Dry contact terminals allow operator configurable alarms for: high and low UVT/UVA set points, low lamp output, leak detected, system fault, etc. |
Humidity Control | Humidity sensor with large regeneratable desiccant system |
Outputs | Self-powered 4-20mA, RS232 serial for PC |
Wavelengths | 253.7 nm (optional 550 nm turbidity compensation upgrade) |
Light Source | Low-pressure mercury UV lamp |
Lamp Life | 2 years |
Flow Rate | 300 – 1000 mL/min |
Pressure Rating | 20 PSI maximum |
Fluid Connections | 1/4″ OD tube push-in fittings |
Wetted Materials | Kynar, Polyethylene, Quartz, SS 316L, Viton |
Electrical | 24VDC 40W power adapter (accepts 90-250VAC 50/60Hz) |
Ambient Temp. | 0 to 45°C (32 to 113°F) |
Water Temp. | 0 to 90°C (32 to 194°F) at 21°C (69.8°F) Ambient temperature |
Storage Temp. | -20 to 60°C (-4 to 140°F) |
Enclosure | NEMA 4X, wall mountable |
Weight | 22 lb (M2000 series & M3000) 24 lb (M4000 series) |
Dimensions | 17”H x 14.25”W x 7.5”D (M2000 series & M3000) 17.75”H x 15.5”W x 6.75”D (M4000 series) |
Technology | Ortho-Beam (M3000) Split-Sense Pro (M2000 & M4000 series) |
Warranty | 2-year limited warranty (Extended care packages available) |
Analyzer Upgrades | Turbidity Comp. Upgrade, Cellular Modem, Dual Transmitter |
Model&Range
ANALYZER SELECTION
MODEL SERIES | DESCRIPTION |
2000 / 3000 | Ideal for general water monitoring applications |
4000 | Ideal for high purity water monitoring applications |
ANALYZER MODELS & RANGE
M series models include UV254 / UVT monitor analyzer, flow cell, calibration bottle, dehumidifier and standard power supply. Automatic chemical cleaning system and additional accessories sold separately.
MODEL# | PATH LENGTH | UVT (%) | UV254 (Abs/cm) | |
M2010 | 1 mm | 0-100 | 0 – 20 | |
M2020 | 2 mm | 0-100 | 0 – 10 | |
M2040 | 4 mm | 0-100 | 0 – 5 | |
M2080 | 8 mm | 1-100 | 0 – 2.5 | |
M3000 | 10 mm x 20 mm | 10-100 | 0 – 1 | |
M4050 | 50 mm | 40-100 | 0 – 0.4 | |
M4100 | 100 mm | 63-100 | 0-0.2 | |
M4150 | 150 mm | 74-100 | 0-0.13 | |
M4250 | 250 mm | 83-100 | 0 – 0.08 |
* Stated ranges are approximate, dependent on industry, site and application
