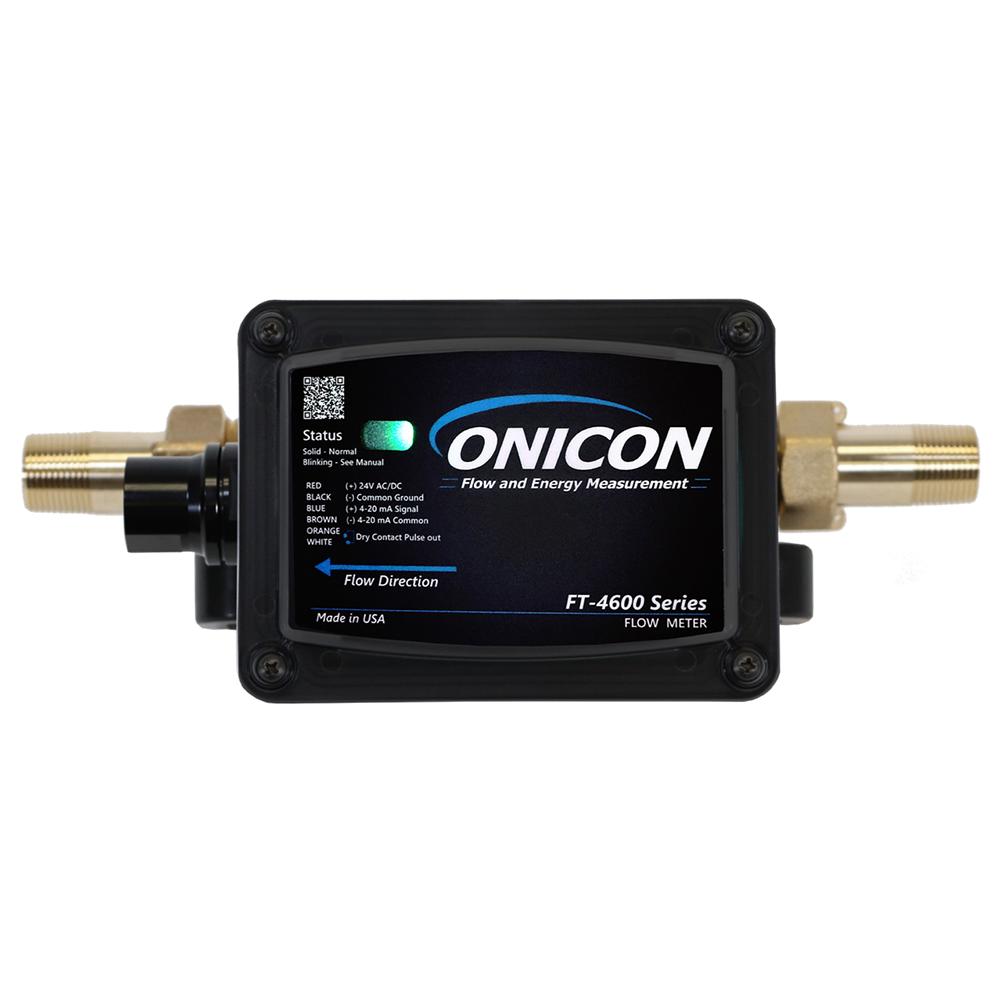

F-4600 Series Wetted Ultrasonic Inline Flow Meter

         ONICON’s F-4600 Inline Flow Meters are designed to accurately measure the flow of water and water glycol solutions in small pipes. Meters are available for ½” – 2½” diameter pipes. The no-moving-parts design operates over a wide flow range with excellent low flow performance.

          The low cost design is provided with threaded process connections, a 4-20mA analog output and a scaled dry contact pulse output for totalization.

          *Optional integral LCD display with BACnet MS/TP or MODBUS RTU is available. LCD display can be mounted up to 5 feet away from flow body for visibility.

Typical Applications

           The F-4600 inline flow meter is ideal for chilled water, hot water, domestic water, condenser water, steam condensate and boiler feed water.

Description

SPECIFICATIONS
